Programming Companion
Java

Programming technique

Debugging and exceptions

Debugging uses evidence to locate and correct faults. Exception handling allows a program to respond safely to unexpected input or unavailable resources.

IB DP CS standards B2.1.3 and B2.1.4: Describe common exception-handling techniques and construct programs using debugging techniques such as trace tables, breakpoints, print statements and step-by-step execution.

Three common error categories

Error typeWhat happensExample
Syntax errorThe program cannot compile because the language rules were broken.Missing semicolon or misspelled keyword.
Runtime errorThe program starts but fails during execution.Invalid number conversion or unavailable file.
Logic errorThe program runs but produces the wrong result.Incorrect formula or branch order.
Error typeWhat happensExample
Syntax errorThe interpreter cannot begin normal execution because the language rules were broken.Missing colon, incorrect indentation or misspelled keyword.
Runtime errorThe program starts but fails during execution.Invalid number conversion or unavailable file.
Logic errorThe program runs but produces the wrong result.Incorrect formula or branch order.

Catch a specific exception

Handle a specific exception

Catch the most specific exception you can handle meaningfully. A catch block should explain what the user can do next rather than merely printing a technical stack trace.

Handle the most specific exception you can respond to meaningfully. An except block should explain what the user can do next rather than merely printing a technical traceback.

Finally

A finally block runs whether or not an exception occurred. It is useful for cleanup or guaranteed final actions.

Debug systematically

Debugging is a repeatable evidence cycle
flowchart TD A[Reproduce the problem] --> B[Compare expected and actual results] B --> C[Collect evidence with a trace, print or breakpoint] C --> D[Change one suspected cause] D --> E[Retest the original and boundary cases] E --> F{Is the problem fixed?} F -- No --> B F -- Yes --> G[Record the cause and correction]

Change one suspected cause at a time so the result of each test remains meaningful.

  1. Reproduce the problem with a specific test case.
  2. State the expected and actual result.
  3. Narrow the fault using a trace table, print statement, breakpoint or step execution.
  4. Change one suspected cause.
  5. Retest the original case and nearby boundary cases.

Validation is not the same as exception handling

Range, presence, length and format checks prevent invalid values; exceptions handle failures that still occur.

Do not hide logic errors

A broad exception handler cannot make an incorrect calculation correct.

Keep evidence

Record the test input, variable values and exact correction so the fault can be explained and reproduced.

Challenges Choose one

Choose a challenge that feels appropriate for you. Code heat is only a rough estimate, not a fixed level.

Safe Integer Input

Challenge ID: PC-T05-C01 · Standards: B2.1.3

Ask the user for a whole number. Prevent the program from crashing when text or a decimal is entered. Keep asking until a valid integer is provided, then display the accepted value.

Reliable Division

Challenge ID: PC-T05-C02 · Standards: B2.1.3, B2.3.2

Ask for two integers and divide the first by the second. Handle invalid numeric input and division by zero with specific messages. The program must not catch every possible exception as one vague error.

Broken Program Investigation

Challenge ID: PC-T05-C03 · Standards: B2.1.4

Collect the debugging evidence sheet from the front of the class. Create or obtain a short program containing at least one syntax error, one runtime error and one logic error. Use compiler messages, print tracing or breakpoints, and step-by-step execution to locate and correct each fault. Record the test case, evidence, cause and correction for every error, then hand the sheet to your teacher.

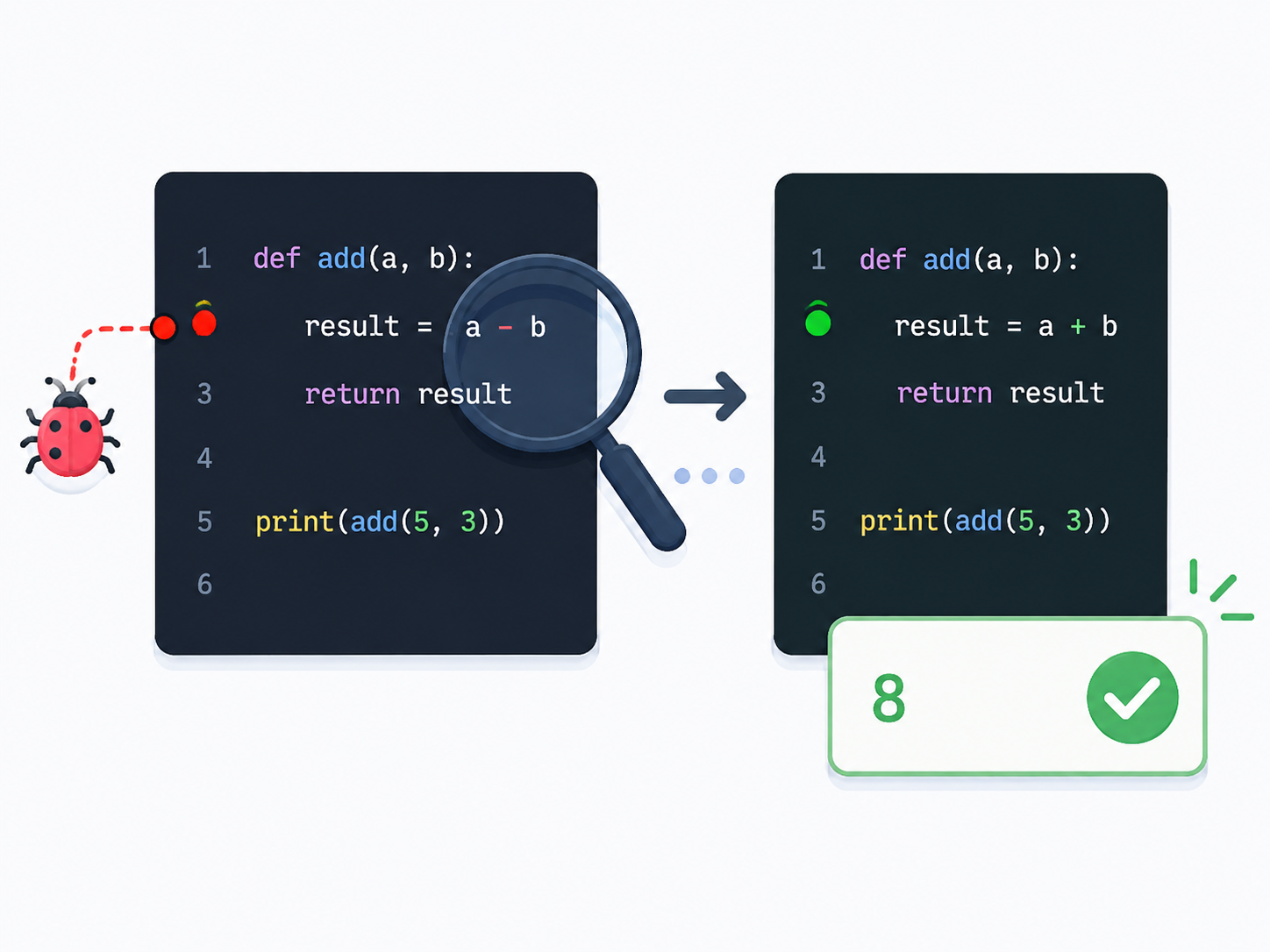

Code being investigated with a bug, magnifying glass, breakpoint and corrected result.

Expression Parser

Challenge ID: PC-T05-C04 · Standards: B2.1.2, B2.1.3, B2.1.4, B2.3.2

Allow the user to enter a calculation as one string, such as 16+8, 120/5 or 9*13. Identify the operator, extract both operands and output the result. Support +, -, * and /. Detect malformed expressions, non-numeric operands and division by zero without crashing.

Scaffold available
